HMultiplier< T > Class Template Reference

#include <hmultiplier.h>

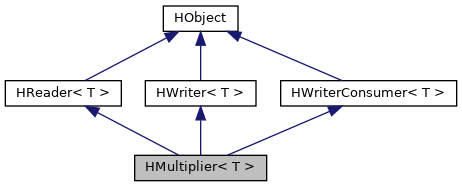

Inheritance diagram for HMultiplier< T >:

Collaboration diagram for HMultiplier< T >:

Public Member Functions
	HMultiplier (HReader< T > *reader, H_SAMPLE_RATE rate, int frequency, int oscillatorAmplitude, size_t blocksize, HProbe< T > *probe=NULL)
	HMultiplier (HWriter< T > *writer, H_SAMPLE_RATE rate, int frequency, int oscillatorAmplitude, size_t blocksize, HProbe< T > *probe=NULL)
	HMultiplier (HWriterConsumer< T > *consumer, H_SAMPLE_RATE rate, int frequency, int oscillatorAmplitude, size_t blocksize, HProbe< T > *probe=NULL)
	~HMultiplier ()
void	Init (H_SAMPLE_RATE rate, int frequency, int oscillatorAmplitude, size_t blocksize)
int	Read (T *dest, size_t blocksize)
int	Write (T *src, size_t blocksize)
void	SetWriter (HWriter< T > *writer)
bool	Start ()
bool	Stop ()
void	SetFrequency (int frequency)
void	Mix (T *src, T *dest, size_t blocksize)
bool	Command (HCommand *command)
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
HReader< T > *	Reader ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Detailed Description

template<class T>
class HMultiplier< T >

Multiplier (unlinear mixer).

Will mix the input signal with a localoscillator signal thus producing (Tin + Tlo) and (Tin - Tlo)

The localoscillator frequency can be changed by calling SetFrequency(). behaviour while the frequency is transitioning is undefined, if you make large adjustments you may want to reduce the input level while setting the new frequency to avoid clicks or noise (check if it is a problem in your actual case)

The multiplier can be created with any amplitude of the local oscillator, but the output level is scaled down, so that the gain factor of the multiplier is always 1. So select a local oscillator amplitude that matches the input signal, and prevents internal overruns (AMPL_in * AMPL_lo <= max(T)/2)

Examples

readers_and_consumers.cpp, readers_and_writers.cpp, and saq.cpp.

Constructor & Destructor Documentation

HMultiplier() [1/3]

template<class T >

HMultiplier< T >::HMultiplier	(	HReader< T > *	reader,
		H_SAMPLE_RATE	rate,
		int	frequency,
		int	oscillatorAmplitude,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HMultiplier (frequency mixer)

HMultiplier() [2/3]

template<class T >

HMultiplier< T >::HMultiplier	(	HWriter< T > *	writer,
		H_SAMPLE_RATE	rate,
		int	frequency,
		int	oscillatorAmplitude,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HMultiplier (frequency mixer)

HMultiplier() [3/3]

template<class T >

HMultiplier< T >::HMultiplier	(	HWriterConsumer< T > *	consumer,
		H_SAMPLE_RATE	rate,
		int	frequency,
		int	oscillatorAmplitude,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HMultiplier (frequency mixer)

~HMultiplier()

template<class T >

HMultiplier< T >::~HMultiplier

Default destructor

Member Function Documentation

Command()

template<class T >

bool HMultiplier< T >::Command ( HCommand *  command )

inlinevirtual

Execute or carry through a command

Implements HReader< T >.

Init()

template<class T >

void HMultiplier< T >::Init	(	H_SAMPLE_RATE	rate,
		int	frequency,
		int	oscillatorAmplitude,
		size_t	blocksize
	)

Common initialization tasks

Mix()

template<class T >

void HMultiplier< T >::Mix	(	T *	src,
		T *	dest,
		size_t	blocksize
	)

Mix two signals

Read()

template<class T >

int HMultiplier< T >::Read ( T *  dest, size_t  blocksize  )

virtual

Read a block of samples

Implements HReader< T >.

SetFrequency()

template<class T >

void HMultiplier< T >::SetFrequency

(

int

frequency

)

Set the frequency of the local oscillator that feeds one of the inputs of the mixer

SetWriter()

template<class T >

void HMultiplier< T >::SetWriter ( HWriter< T > *  writer )

inlinevirtual

Set writer

Implements HWriterConsumer< T >.

Start()

template<class T >

bool HMultiplier< T >::Start

virtual

Initialize before first read

Reimplemented from HReader< T >.

Stop()

template<class T >

bool HMultiplier< T >::Stop

virtual

Cleanup after last read

Reimplemented from HReader< T >.

Write()

template<class T >

int HMultiplier< T >::Write ( T *  src, size_t  blocksize  )

virtual

Write a block of samples

Implements HWriter< T >.

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hmultiplier.h
• /home/henrik/Git/Hardt/hardt/libhardt/mixers/hmultiplier.cpp
