HFilter< T > Class Template Reference

#include <hfilter.h>

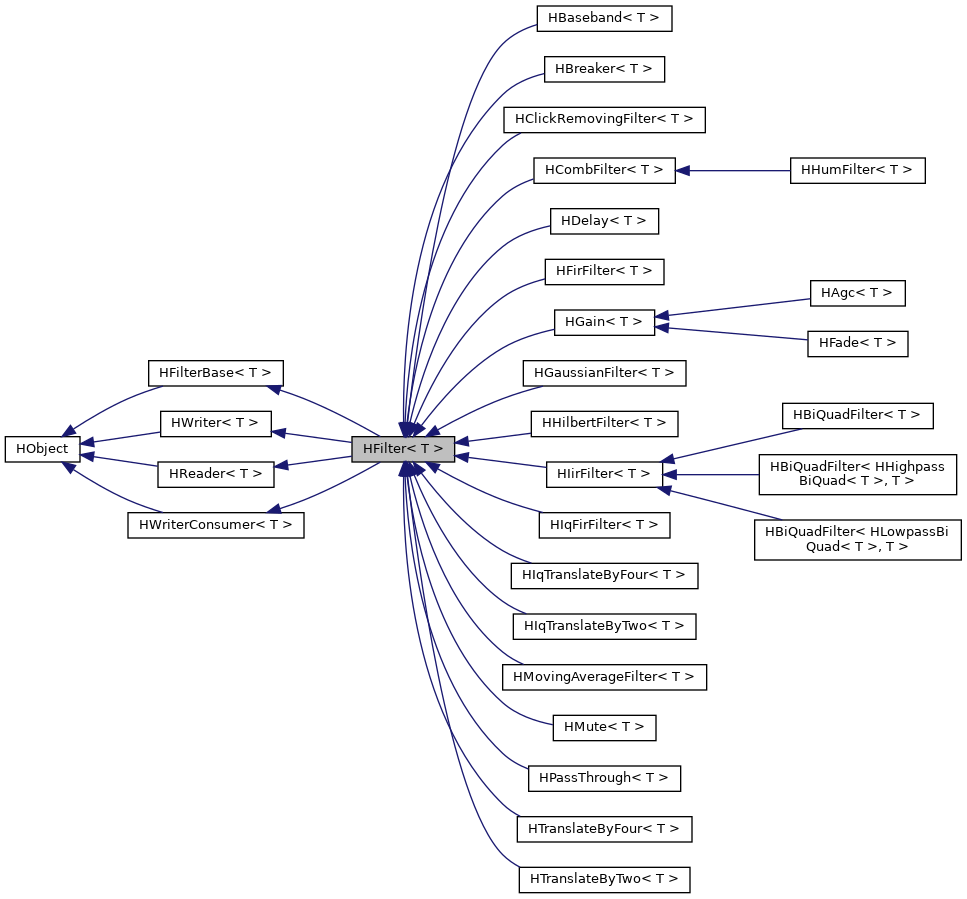

Inheritance diagram for HFilter< T >:

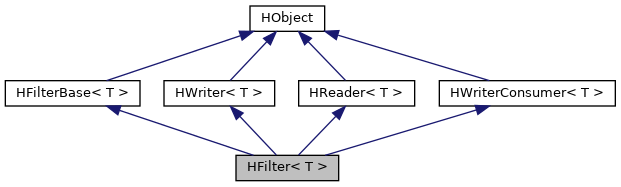

Collaboration diagram for HFilter< T >:

Public Member Functions
	~HFilter ()
int	Write (T *src, size_t blocksize)
int	Read (T *dest, size_t blocksize)
virtual void	Filter (T *src, T *dest, size_t blocksize)=0
bool	Start ()
bool	Stop ()
bool	Command (HCommand *command)
void	Enable ()
void	Disable ()
bool	GetEnabled ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
HReader< T > *	Reader ()
Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Static Public Member Functions
static std::vector< float >	ReadCoeffsFromFile (std::string filename)
static std::vector< float >	ReadCoeffsFromFile (char *filename)

Protected Member Functions
	HFilter (HWriter< T > *writer, size_t blocksize, HProbe< T > *probe=NULL)
	HFilter (HWriterConsumer< T > *consumer, size_t blocksize, HProbe< T > *probe=NULL)
	HFilter (HReader< T > *reader, size_t blocksize, HProbe< T > *probe=NULL)
void	SetWriter (HWriter< T > *writer)

Protected Attributes
int	_blocksize

Detailed Description

template<class T>
class HFilter< T >

Base class for filter implementations. This class defines a pure virtual method, Filter(), which must be implemented by classes inheriting this class.

The constructor is protected, this class cannot be instantianted directly.

Constructor & Destructor Documentation

HFilter() [1/3]

template<class T >

HFilter< T >::HFilter ( HWriter< T > *  writer, size_t  blocksize, HProbe< T > *  probe = NULL  )

inlineprotected

Construct a new HFilter that writes to a writer

HFilter() [2/3]

template<class T >

HFilter< T >::HFilter ( HWriterConsumer< T > *  consumer, size_t  blocksize, HProbe< T > *  probe = NULL  )

inlineprotected

Construct a new HFilter that registers with an upstream writer

HFilter() [3/3]

template<class T >

HFilter< T >::HFilter ( HReader< T > *  reader, size_t  blocksize, HProbe< T > *  probe = NULL  )

inlineprotected

Construct a new HFilter that reads from a reader

~HFilter()

template<class T >

HFilter< T >::~HFilter ( )

inline

Default destructor

Member Function Documentation

Command()

template<class T >

bool HFilter< T >::Command ( HCommand *  command )

inlinevirtual

Execute or carry through a command

Implements HReader< T >.

Disable()

template<class T >

void HFilter< T >::Disable ( )

inline

Disable the filter

Enable()

template<class T >

void HFilter< T >::Enable ( )

inline

Enable the filter (the filter is always enabled after construction)

Filter()

template<class T >

virtual void HFilter< T >::Filter ( T *  src, T *  dest, size_t  blocksize  )

pure virtual

Run a block of samples through the filter

Implements HFilterBase< T >.

Implemented in HDelay< T >, HGaussianFilter< T >, HAgc< T >, HHumFilter< T >, HIqTranslateByFour< T >, HTranslateByFour< T >, HMovingAverageFilter< T >, HBaseband< T >, HHilbertFilter< T >, HCombFilter< T >, HIirFilter< T >, HIqTranslateByTwo< T >, HTranslateByTwo< T >, HIqFirFilter< T >, HFirFilter< T >, HBiQuadFilter< BIQUAD, T >, HBiQuadFilter< HLowpassBiQuad< T >, T >, HBiQuadFilter< HHighpassBiQuad< T >, T >, HMute< T >, HFade< T >, HBreaker< T >, HClickRemovingFilter< T >, HGain< T >, HPassThrough< T >, and HComplexFilter< T >.

GetEnabled()

template<class T >

bool HFilter< T >::GetEnabled ( )

inline

Returns true if the filter is enabled (filter is always enabled after construction), false otherwise

Read()

template<class T >

int HFilter< T >::Read ( T *  dest, size_t  blocksize  )

inlinevirtual

Read a block of samples

Implements HReader< T >.

ReadCoeffsFromFile() [1/2]

template<class T >

static std::vector<float> HFilter< T >::ReadCoeffsFromFile ( char *  filename )

inlinestatic

Utility function that reads a list of floating point coefficients from a file

It can handle files with one parameter on each line or several parameters on each line separated by comma, blankspace or semicolon. It will ignore other junk (characters) and terminates a line on a c-style single line comment ('//')

ReadCoeffsFromFile() [2/2]

template<class T >

static std::vector<float> HFilter< T >::ReadCoeffsFromFile ( std::string  filename )

inlinestatic

Utility function that reads a list of floating point coefficients from a file

It can handle files with one parameter on each line or several parameters on each line separated by comma, blankspace or semicolon. It will ignore other junk (characters) and terminates a line on a c-style single line comment ('//')

SetWriter()

template<class T >

void HFilter< T >::SetWriter ( HWriter< T > *  writer )

inlineprotectedvirtual

Implements HWriterConsumer::SetWriter()

Implements HWriterConsumer< T >.

Start()

template<class T >

bool HFilter< T >::Start ( )

inlinevirtual

Initialize before first read/write

Reimplemented from HReader< T >.

Reimplemented in HMute< T >.

Stop()

template<class T >

bool HFilter< T >::Stop ( )

inlinevirtual

Cleanup after last read/write

Reimplemented from HReader< T >.

Reimplemented in HMute< T >.

Write()

template<class T >

int HFilter< T >::Write ( T *  src, size_t  blocksize  )

inlinevirtual

Write a block of samples

Implements HWriter< T >.

Member Data Documentation

_blocksize

template<class T >

int HFilter< T >::_blocksize

protected

The filters set blocksize

---

The documentation for this class was generated from the following file:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hfilter.h
